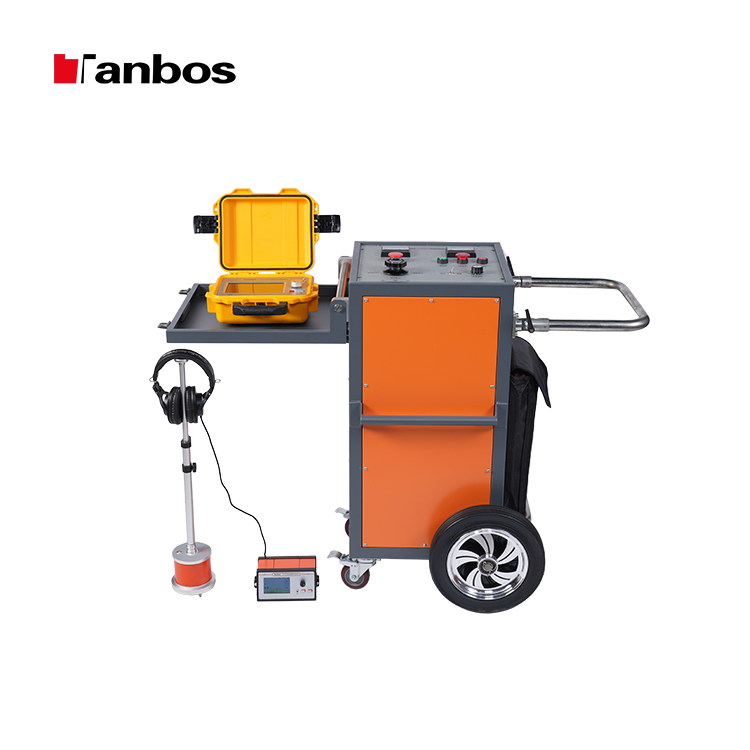

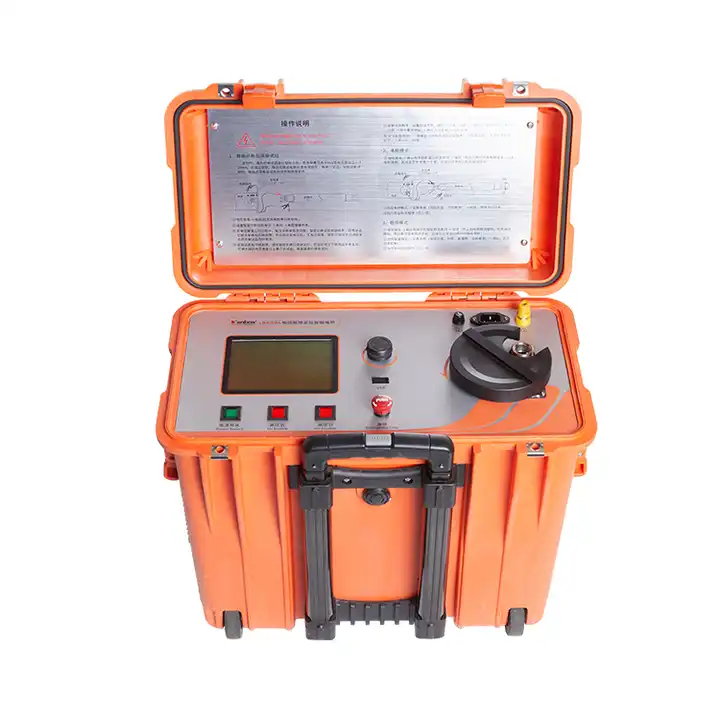

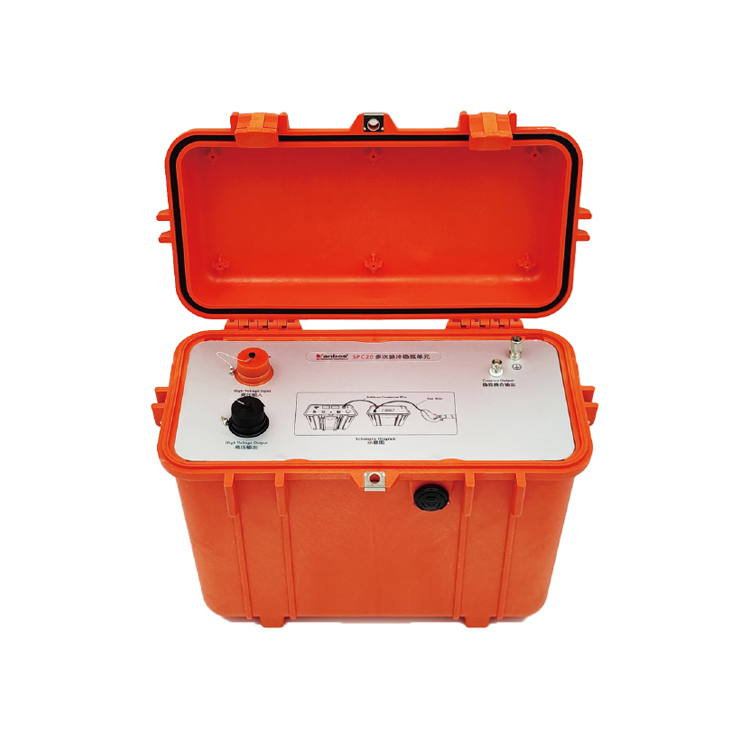

Cable Fault Location

Introduction

• After-laying testing of newly installed or repaired cable systems
• Routine testing and diagnostics for assessment of service-aged cables
• PD monitored voltage withstand testing and non-destructive diagnostic testing
• Comprehensive PD measurement capabilities according to IEC 60270, IEC 60885-3, IEEE 400.3

Time-saver at your service for cable diagnostics：

Connect — Automatic — Inspect

The on field test is very simple, after the connection between TV60 and cable is completed, the operating

software will guide you through the entire process.

Connect: After the necessary inspections and pre-tests are completed, only need few connections about

DAC test.



Automatic: Second step is just follow the steps of operating software, only need to input some necessary

parameters of tested cable, others system will complete it
automatically.

                           Calibration                                                                Automatic test

                    Analysis the PD mapping                                                  Test report

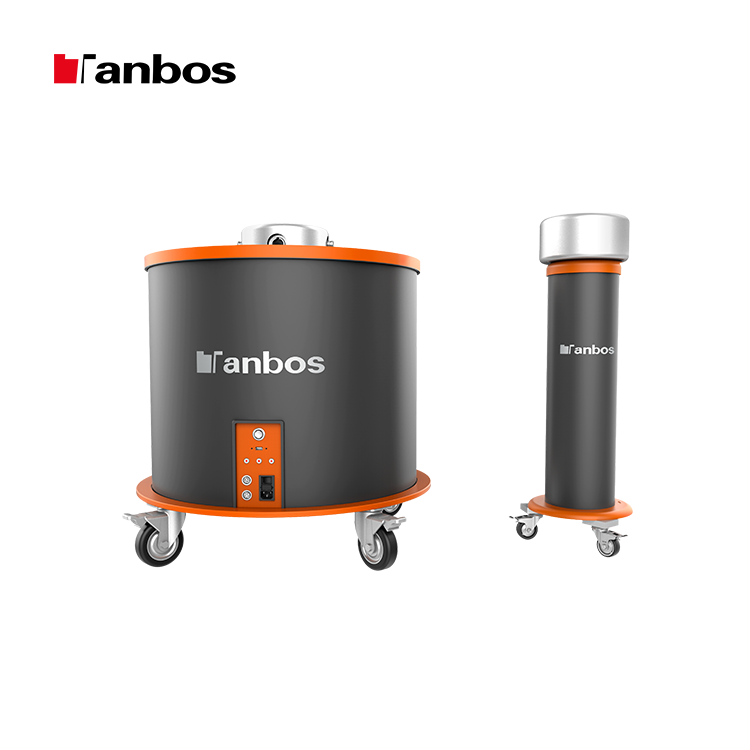

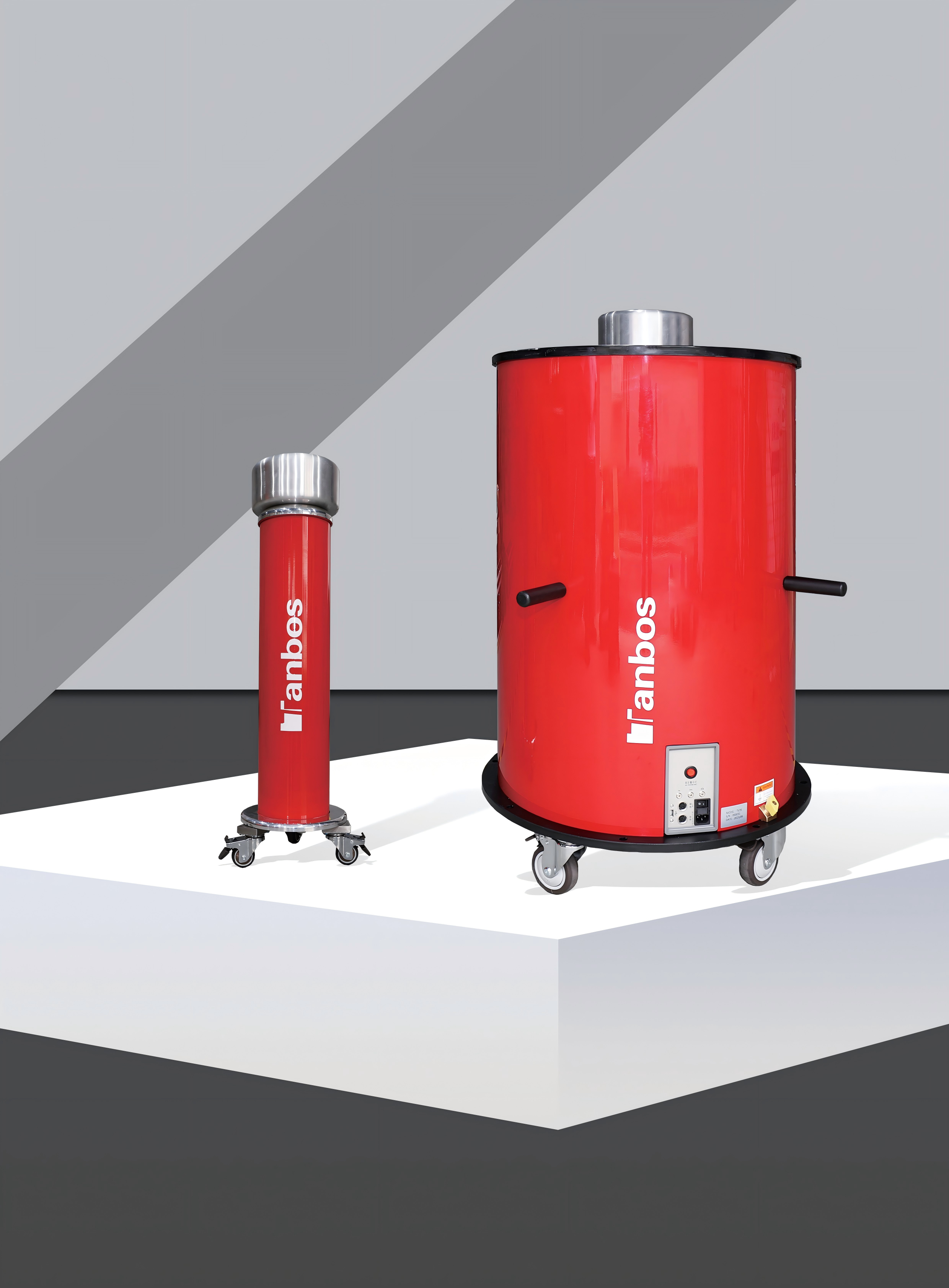

Technical data of TV60
Input voltage	220V AC±10%, 50Hz
Output voltage
DAC	0-60 kV（peak）/0-42.4kV (rms)
Precision	±1%
Resolution	0.1kV
Frequency range	20Hz~500Hz
Capacity range	1 nF ... 10 μF at 30 kVpeak
	1 nF ... 4.25 μF at 60 kVpeak
PD sensitivity range	2 pC … 100 nC (acc. to IEC60270)
Resolution	±1pC
System noise level	< 20 pC at 60 kV(peak)
PD localisation
Measuring range	0 … 20,000m
Propagation velocity	5 … 120m/µs
Sampling rate	200 MHz
Bandwidth	150kHz ~ 45MHz, automatic adjustment
Precision	1% of the cable length
Resolution	± 1pC / ± 0.1m
TD(Tan Delta) test
Measuring range	0.1% ~ 10%, automatic adjustment
TDR joint localisation in calibration mode	Integrated
Software	User selectable graphical interface, online “live” PD mapping
	integrated measurement database, comprehensive viewing
	processing, analysing and reporting of measurement data
Temperature
Operation	-20 °C … 55 °C
Storage	-30 °C … 70 °
Relative humidity	93 % at 30 °C (non-condensing)
Weight	100 kg(net)
Dimensions	Ø 690 x H 1000 mm

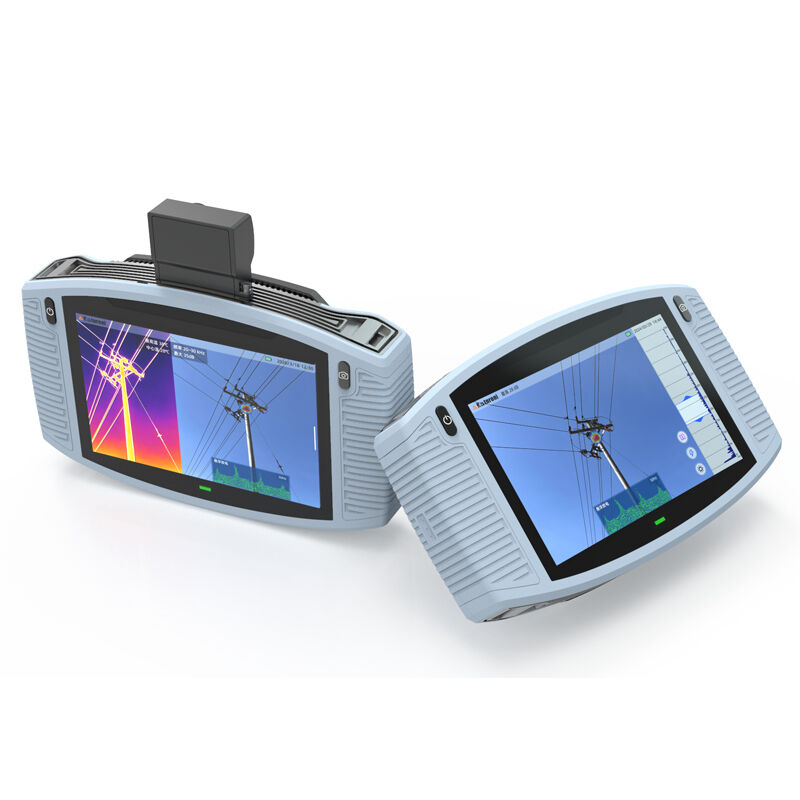

The Mini CAM is a standalone system for acoustic image measurements and signal analysis. As a standalone system, no additional equipment is needed for basic usage of the device.

This rugged, versatile tool can help you quickly and easily identify a variety of undesirable industrial condi- tions, like electric faults, gas leaks. With pinpoint accuracy the Mini CAM allows you to instantly see audible and ultrasonic noises that are hard to detect, With 128 Digital Microphones, it will help you clearly see what you've been missing.

By adding an optional thermal camera part, the Mini CAM can change functions between acoustic imaging and thermal imaging, making diagnosis more comprehensive and efficient.

When an electric arc occurs, it results in ultrasonic wave element, higher than the audible frequency. There- fore, in noisy environment, ultrasonic wave element can be measured to determine whether or not electric arc have occurred and where they have occurred.

Introduction

Features

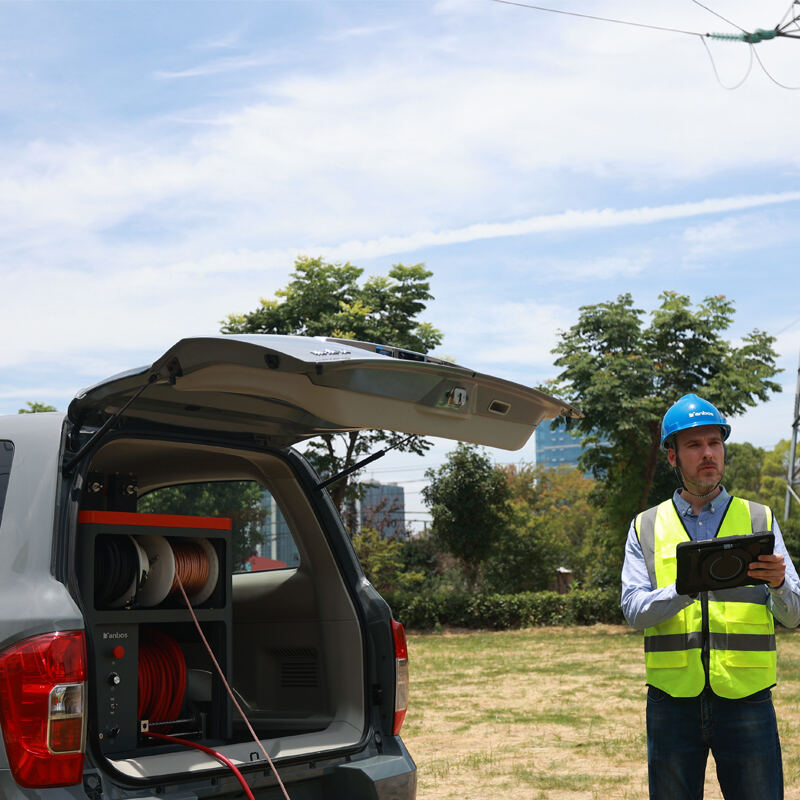

Fully insulated design, highly integrated,easy to deploy, and low requirements onvehicle models

Smart In Safety

Isolation Control                                            Emergency Stop

Operation far away from high voltage unit      TBS-1000 can be physically shut down remotely

High voltage Connection Detection                                      Ground Detection

Automatically detect connection is good or not.Automatically detect the grounding is normal or not

Smart In Test

AUTO GO software test system

• Auto Go consists of TDR, ICE, ARM, and DECAY test methods
• With Auto Go Intelligent Mode, TBS-1000 can automatically detect cable status, analyze TDR waveforms, and pre-locate faults with one click. Auto Go also has a built-in powerful database function to store test data in real time

Smart In Function

Parameters

Introduction

T20 consists of three parts

Fault location surge generator, model LP30/2

Cable fault pre-locator (TDR), model WL20

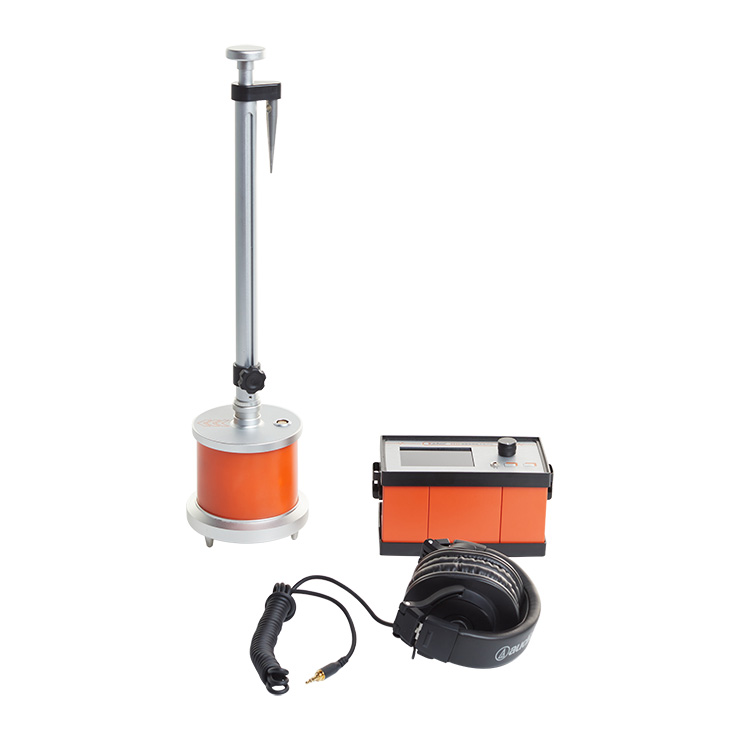

Cable fault pin-pointer, model PP20

Features

Appearance:exquisite,light, portable, integrated

1.Light weight: no more than 32kg.

2.Exquisite:US PALICAN trolley case.

3.Portable: integrated trolley case.

4.Integrated: integrate capacitor, controller, booster, rectifier and discharge device in one.

Safety

1.HV output line with special insulation, withstand voltage up to 60kV.

2.With "emergency" button, furtherimproved the safety of operation.

3.Multi-safety protection, HV starts from 0, automatic release thecapacitance after power off.

Pre-location test method

1.LV impulse method: applicable to locate low resistance fault, open circuit fault, total lengthand intermediate joint

2.Impulse current method: current coupler gathers signal from ground line, ap plicable tolocate high resistance and flashover fault. Safe and reliable

3.Second-impulse method (optional): high precision, simple waveform, easy analysis, applica.ble to locate high resistance and flashover fault

Pinpoint Technology

1.Iintelligent time-different technology: show the time difference between fault and test place in number, a lower numbermeans closer to the fault point.

2.Powerful noise reduction technology can effectively filter out environmental interference, leaving only the "Crackingdischarge sound at the fault point in your ears.

Parameters

TECHNICAL DATA
LP30/2
DC voltage output	0-32 kV continuously adjustable
Max output current	30mA
Max discharge energy	1024J
HV mode	Impulse and DC
Impulse period	Fixed 5s
Polarity of output voltage	Negative polarity
Power supply	AC 220~240V 50/60Hz, 1kVA
LED lighting	Providing illumination for dark environments
Max output Power	300W
Safety	Temperature detection, automatic protection loop, double grounding system
Operation temperature	-25℃~ 50℃
Strorage temperature	-30℃~ 60℃
Weight	32kg
Size	500×300×400mm
PP20
Display	3.5 ", TFT color display, 480 x 320
Backlight	LED
Dynamic range	Magnetic channel > 99dB; Sound channel > 99dB
Acoustic amplification	99dB, free adjustment
Acoustic magnetic time	0.1ms—60ms，synchronous display of historical records
Difference display Auditory protection	Touch mute sound, sound intensity limit
Positioning accuracy	0.1m
Space sensing function	Compass guidance, direction indication, cable position identification
Filtering range	Full pass: 100Hz—1500Hz ;Low-pass: 100Hz—400Hz
	Band-pass: 400Hz—800Hz ;High-pass: 800Hz—1500Hz
Noise processing	Intelligent background noise reduction technology
Interface	Acoustic and magnetic pinpoint and audio pinpoint interface; 3.5mm jack
Power Supply	DC 7.4V/5200mAh lithium battery
Continuous working time	≥8h
IP	Handset IP43, Radar IP64
Packing weight	5.5kg (including plastic case)
Packing size (L x W x H)	420×320×150mm
WL20
Impulse voltage	30V
Test range	20m-100km @ v/2=80m/μs
Wave speed adjustment	150-300m/us
Impulse width	70ns-15us automatic adjustment
Resolution	0.1m
Time domain accuracy	< 50 ppm
Sampling frequency	200MHz
Output impedance	50Ω
Working mode	LV TDR method; ICE method; ARM method (secondary impulse method)-optional
Waveform transient comparison	Up to 4 waveforms can be compared
Impulse polarity	Negative polarity
User interface language	English
Data import/export	Allowed
Cursor	With independent dual cursor control
Screen display	7 ", 800 x 480 LED backlight color display
Screen brightness	800 cd/m² anti-glare capacitor touch screen
Storage	＞10000 test data
Interface	Aviation plug, USB2.0
Power consumption	3.5W
Power supply	Lithium battery 7.4V, 5200mAh, rechargable
Continuous working time	≥5h
Weight	3.0kg
Size (L x W x H)	270×250×125mm

Tanbos

 The T20 0-35KV Portable Power Underground Cable Fault Locator is an instrument this is voltage must-have is electric is high and fix. This product ground-breaking find and cable pinpoint in underground power lines allowing quick and easy composed repairs of state-of-the-art technology.

 The brand name is a name this is trusted the industry of underground cable fault locating and contains turn out to be the industry standard when it comes to quality fault high is efficient. The Tanbos T20 model isn't exclusion featuring its functions being improved display this can be user-friendly.

 The T20 makes usage of the charged power injection strategy better and dependable in searching for the positioning accurate is accurate of fault unlike main-stream cable locators. This fault features an array locator of power outputs from 0-35KV, letting it spend cash for almost any voltage range of underground cables.

 The T20 could be the perfect solution portable fault selecting having its lightweight, lightweight and design durable. It’s convenient and so may be handled by means of an individual who is making solitary an instrument crisis ideal.

 A screen specific is user-friendly of T20 causes it to be simple for virtually any expert to target. The display interactive is touchscreen has an indicator obvious regard to the cable fault location, causing the easy and quick to work with additionally for individuals who without the past experience.

 The T20 could be engineered with safety in mind alongside its advanced functions technology level is cutting-edge. This method is sold with many protections different example protection and overvoltage this is overcurrent ensuring the safety and safety of both the operator in addition to gear.

The Tanbos T20 0-35KV Portable Power Underground Cable Fault Locator is a unit essential just about any electrician or dealing professional underground power lines featuring its unmatched abilities, higher level technology, and system easy-to-use. This dependable and function product durable the answer clear is means better for fast, accurate and safe fault detection and fix, ensuring uninterrupted energy and customer care.

Introduction

By using the surge generator to breakdown the faulty cable, observe the TDR waveform to get the predetermined fault position, and then use the pin-pointer to accurate locate the fault.

Support LV TDR, ICE and ARM prelocation methods

Automatic determination of cable end and fault location (in LV TDR and ARM)

Fault location power LP15/8
DC voltage output	0-15 kV continuously adjustable
Output power	Peak 2000W
Capacitance	8μf
Max discharge energy	900J
Power supply	Lithium battery
Size	500×305×457 mm
Weight	29.5kg

Cable fault pre-locator TDR WL20
Low voltage impulse launching voltage	30V
Sampling frequency	200MHz
Max ranging scope	100km
Dead zone	2m
Max resolution	0.4m
Power supply	AC220V, 50Hz
Size	274×218×81 mm
Weight	3.5kg

Cable fault pin-pointer PP20
Precision of point positioning	0.1m
Precision of path location	0.1m
Precision of step voltage method	0.1m
Work mode	Anti-noise mode Strong noise reduction mode Background suppression noise reduction mode Point location mode: Intelligent Acousto-Magnetic Time Difference Mode
Display mode	Color LCD
Power	Li-battery, 12h standby

The Tanbos T8 Portable Underground Cable Fault Finder Indicator Electric Supply Cable Fault Detector is in fact something this can be really must-have whoever probably will effectively and quickly find cable it is actually underground. Tanbos, the finish high this technique this can be really practical is probably an title recognized in the marketplace this is actually grasped for creating top-notch and goods which are dependable and so the T8 is maybe not any exclusion. Primarily because title this might be really genuine, the T8 is portable, meaning it might be efficiently transported from an area particular is specific an alternate. This might effortlessly causes it to be an solution really specialists being certainly perfect have actually to loc cable ate in a quantity that's true of. The system is lightweight, user-friendly, and therefore can offer outcomes being accurate only a moments that are brief can be complete are few. The T8 features advanced technology that permits it to quickly and accurately recognize cable faults. It really works through the mixture of sound and indicators that will be faults which efficiently are innovative cables that can be identify underground. The product broadly speaking beautifully made with a transmitter this is often really effective can deliver signals through the cable, allowing the consumer to find the cable's figure and program out any faults. A LCD is roofed by the apparatus display it is really presents which are high-resolution is essential such as for example distance to fault, fault kind, and fault present. Additionally has production this is really adjustable happens licenses when it comes to customer to obtain the particular level appropriate exists associated as a result of certain requirements being particular. The T8 is made to teach for a range cables, including energy cables, discussion cables, and control cables. Its worth both 50Hz and frequencies being 60Hz which means to make certain that it may turned out to be present in a surroundings which are few vary. The t8 is also developed to final along side its higher rate design and technology easy-to-use. These items is manufactured not materials that are top-quality is developed to withstand conditions that will be harsh could be ecological. It shall often be supported by having an assurance actually comprehensive which provides users reassurance realizing that they're able to depend on their Tanbos T8 Portable Underground Cable Fault Finder Indicator Electric Supply Cable Fault Detector

The Tanbos PP20 High Accuracy Intelligent Cable Fault Finder Pin-pointer is really a tool advanced to help find faults in underground cables with utmost precision and accuracy. The item will be the innovation latest from the brand world-renowned, Tanbos. The PP20 would work to be applied in several applications, including energy transmission, telecommunications, commercial and railway systems. It truly is designed to deliver performance high keeping user-friendly operations. This product features higher level circuitry along with an screen smart helps it be simple to use. It is dependable, efficient and creates outcomes that are accurate. The PP20 uniquely detects any fault in a underground cable’s insulation or sheath, providing real-time diagnostic information with pinpoint precision. The following is a function important helps minimize system downtime, reduce upkeep expenses and guarantee the security of operators. The PP20 was made to withstand harsh surroundings, that makes it these devices ideal industry applications in several industries and climate conditions. One of many awesome benefits of using the Tanbos PP20 is its effectiveness in tracing cables that can easily be underground. The product’s advanced technology enables it to quickly locate faults and accurately even yet in circumstances where other cable fault finders are not able to. The PP20 helps to make sure you will find not any harm unintentional interruption towards the cable system during fault-finding with non-invasive and non-destructive evaluation techniques. The PP20 is produced with high-quality materials giving it the dependability and durability it entails to perform effortlessly. Its design lightweight and software allow it to be ideal for usage by industry professionals, designers, and workers that are upkeep. The PP20 can withstand the deterioration linked to usage regular rendering it a fantastic item for every company that values durability, dependability, and precision along side its top-quality create

Introduction

Work independently

When used independently, only one test wire is needed to achieve testing of the full length (broken wire), joints, and low impedance fault distance of the power cables.

Principle

It’s based on the radar principle and makes use of the fact that any sudden deviations in the characteristic impedance of a cable reflect part of the energy transmitted into the cable. The degree of reflection is dependent on the magnitude of the deviation in the characteristic impedance, the number of reflections, the cable length and the distance to the fault position.

Work with surge generator (Thumpers)

When combined with a surge generator and suitable separation devices, the WL20 supports multiple HV prelocation methods (e.g., ARM, ICE etc.). Its adaptive trigger technology ensures optimal timing of TDR measurements for most accurate results.

LV TDR                                          ICE                                         ARM

Parameters

Presenting the Tanbos WL20 100KM Automatic TDR Cable Fault Locator, the clear answer obvious is unquestionably perfect faults which could be determining underground cables quickly and accurately. Meant to be user-friendly and efficient, this cable fault locator requires training this is really minimal can typically be operated by experts of all quantities. Insurance coverage organizations a maximum fault-finding distance of 100KM, the WL20 is undoubtedly an unit this is really monitoring ideal systems, troubleshooting and upkeep doing hidden telecoms and power cables. This is really many one of many key shows with this item revolutionary its Automatic Fault Finding function that could quickly figure out faults even yet in complex cable. What this means is our fault locator is very efficient and for that reason can help to save time experts that are adequate could be assisting faults to your shortest time this might be really attainable. More over, the product can locate and assess the distance to cable faults, shows the cable course evaluation results, and stores and analyzes the knowledge for future guide. Lots among these guarantee the end-users accurate and recognition this is accurate of faults. The Tanbos WL20 100KM Automatic TDR Cable Fault Locator features a hard and design really durable can withstand the conditions being harsh add the work. Along side its individual display intuitive can very quickly adjust this product's settings to eet their needs generally that are specific. This fault locator also includes a battery pack rechargeable that could endure up to 12 hours for the charge this will be really solitary. This may make certain it is simple for experts to work well with the device for extended periods without fretting about running definitely not power. It is really efficient cable finding to sum up, the Tanbos WL20 100KM Automatic TDR Cable Fault Locator was designed to produce a affordable and solution. The device is good for utilized in a myriad of applications, including power blood circulation, telecommunications, and underground resources featuring its higher rate functionality and design user-friendly. Buying this process is clearly a investment great your business's effectiveness, along with Tanbos because of understood reality high end, you are going to be guaranteed in full of superior quality and satisfaction this will be really suffering. Order your Tanbos WL20 100KM Automatic TDR Cable Fault Locator and have the difference it could make running a business operations today
